Temperature transmitters

Tetra Pak offer a wide range of temperature transmitters.
This page shows a selection of the available variants.
Contact your Tetra Pak representative to get more information.

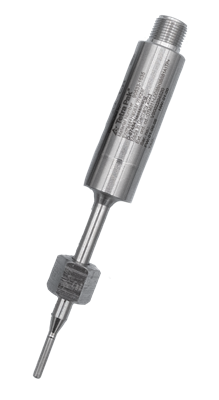

TM311, IO-Link Application TM311 is used for temperature measuring in hygienic and aseptic applications in the food, beverage and pharmaceutical industries with IO-Link digital protocol General The compact thermometer measures the process temperature using a Pt100 sensor element (Class A, 4-wire). An optional integrated transmitter converts the Pt100 input signal. In the version with integrated electronics, the device automatically detects the connection variant (IO-Link or 4–20 mA). Benefits IO-Link output signal is a new trending industrial point to point digital communication protocol and has various advantages TM311 has a sensor+transmitter matched option which has increased accuracy up to 0.14 C Suitable for pipe and tank applications EHEDG approved process connection variety Thermowell and without thermowell options with fast response time












TPT12, with and without cable Application TPT12 is used for temperature measuring in pipelines, dimensions DN 25 - 100. Benefits High accuracy Built-in transmitter = No need for transmitters in cabinet (saves space). Smaller sensor point lowers the risk of reading errors due to stem heat. Possible to use the existing wiring when you replace it with an existing sensor only adding a connector (and removing transmitter in cabinet). TPT31 Application TPT31 is used for temperature measuring in pipelines, dimensions DN 25 - 100. Benefits Higher accuracy than TPT12 Digital transmitter = No need for transmitters or analogue input cards in cabinet (saves space and cost). Smaller sensor point lowers the risk of reading errors due to stem heat. Possible to get diagnostics from transmitter. EAC approved TPT12 and TPT31 Same type of transmitters as above, but EAC marked as they conform to technical regulations of the Euroasian Customs Union.









TM411 Application TM411 is used for temperature measuring in tanks and in projects. Benefits High accuracy
Built-in transmitter = No need for transmitters in cabinet (saves space).







Weld in connections
 DescriptionDenominationPart NoAdd to cart
 For TPT12
See "Accessories, temperature"

 For TM311, TMR35 and TM411
See "Accessories pressure"


TM311 Compact Resistance Thermometer
 DescriptionDenominationRange_C°Part NoAdd to cart
 TM311, Threaded G1"
Direct contact
4_20mA+IO-Link
M12, IP69K
316L_housing_and_probe_material
0.76um surface roughness
Standard accuracy 0.5 °C
1.5s T90 - response time		RTD, TM311 G1" L=50.00mm 0-15090532-7948
RTD, TM311 G1" L=80.00mm0-15090532-7949
RTD, TM311 G1" L=100.00mm0-15090532-7950
RTD, TM311 G1" L=200.00mm0-15090532-7951
RTD, TM311 G1" L=300.00mm0-15090532-7952

 TM311, Clamp
Direct contact
4_20mA+IO-Link
M12, IP69K
316L housing and probe material
0.76um surface roughness
Standard accuracy 0.5 °C
1.5s T90 - response time		RTD, TM311 Cl.DN25-38 L=40.00mm 0-20090532-5566
RTD, TM311 Cl.DN25-38 L=40.00mm0-15090532-5567
RTD, TM311 Cl.DN25-38 L=50.00mm0-15090532-5568
RTD, TM311 Cl.DN25-38 L=50.00mm0-20090532-5569
RTD, TM311 Cl.DN25-38 L=70.00mm0-15090532-5570
RTD, TM311 Cl.DN25-38 L=70.00mm0-20090532-5571
RTD, TM311 Cl.DN25-38 L=80.00mm0-15090532-5572
RTD, TM311 Cl.DN25-38 L=80.00mm0-20090532-5573
RTD, TM311 Cl.DN25-38 L=100.00mm0-15090532-7901
RTD, TM311 Cl.DN25-38 L=200.00mm0-15090532-7902
RTD, TM311 Cl.DN25-38 L=300.00mm0-15090532-7903

 TM311, Clamp
Direct contact
4_20mA+IO-Link
M12, IP69K
316L housing and probe material
0.76um surface roughness
High accuracy 0.14 °C + 3 point calibration certificate
1.5s T90 - response time		RTD, TM311 Cl.DN25-38 L=40.00mm 0-15090532-5543
RTD, TM311 Cl.DN25-38 L=50.00mm0-15090532-5544
RTD, TM311 Cl.DN25-38 L=70.00mm0-15090532-5545
RTD, TM311 Cl.DN25-38 L=80.00mm0-15090532-5546

 TM311, Varivent
Direct contact
4_20mA+IO-Link
M12, IP69K
316L housing and probe material
0.76um surface roughness
Standard accuracy 0.5 °C
1.5s T90 - response time		RTD, TM311 Varivent Fl.50 L=20.00mm 0-15090532-7931
RTD, TM311 Varivent Fl.50 L=20.00mm0-20090532-7932
RTD, TM311 Varivent Fl.68 L=30.00mm0-20090532-7936
RTD, TM311 Varivent Fl.68 L=30.00mm0-15090532-7937
RTD, TM311 Varivent Fl.68 L=50.00mm0-15090532-7941
RTD, TM311 Varivent Fl.68 L=50.00mm0-20090532-7942
RTD, TM311 Varivent Fl.68 L=70.00mm0-15090532-7946
RTD, TM311 Varivent Fl.68 L=70.00mm0-20090532-7947

 TM311, Clamp (with thermowell)
With built-in thermowell CSA/US marked
4_20mA+IO-Link
M12, IP69K
316L housing and probe material
0.76um surface roughness
Standard accuracy 0.5 °C
3.0s T90 - response time		RTD, TM311 Cl.DN25-38 L=40.00mm 0-15090532-7907
RTD, TM311 Cl.DN25-38 L=50.00mm0-15090532-7908
RTD, TM311 Cl.DN25-38 L=70.00mm0-15090532-7909
RTD, TM311 Cl.DN25-38 L=80.00mm0-15090532-7910
RTD, TM311 Cl.DN25-38 L=100.00mm0-15090532-7911
RTD, TM311 Cl.DN25-38 L=200.00mm0-15090532-7912
RTD, TM311 Cl.DN25-38 L=300.00mm0-15090532-7913
RTD, TM311 Cl.DN40-51 L=40.00mm0-15090532-7972
RTD, TM311 Cl.DN40-51 L=50.00mm0-15090532-7973
RTD, TM311 Cl.DN40-51 L=70.00mm0-15090532-7974
RTD, TM311 Cl.DN40-51 L=80.00mm0-15090532-7975
RTD, TM311 Cl.DN40-51 L=100.00mm0-15090532-7976
RTD, TM311 Cl.DN40-51 L=200.00mm0-15090532-7977
RTD, TM311 Cl.DN40-51 L=300.00mm0-15090532-7978


TPT12 with and without cable
 DescriptionDenominationPart NoAdd to cart
 TPT12
TPT12 L=15.00mm 0-150 deg.C 90511-3292
TPT12 L=15.00mm 0-150 deg.C90530-6461
TPT12 L=15.00mm 0-160 deg.C90511-3291
TPT12 L=15.00mm 0-160 deg.C90530-6460
TPT12 L=15.00mm 0-350 deg.F90511-3293
TPT12 L=25.00mm -20-140 deg.C90511-5811
TPT12 L=25.00mm 0-100 deg.C90530-4480
TPT12 L=25.00mm 0-100 deg.C90530-6464
TPT12 L=25.00mm 0-150 deg.C90510-5632
TPT12 L=25.00mm 0-150 deg.C90530-6463
TPT12 L=25.00mm 0-160 deg.C90530-6462
TPT12 L=25.00mm 0-160 deg.C90510-5633
TPT12 L=25.00mm 0-200 deg.C90510-5635
TPT12 L=25.00mm 0-200 deg.C90530-6465
TPT12 L=25.00mm 0-350 deg.F90510-5634
TPT12 L=15.00mm 0-160 deg.C SMO90510-9097
TPT12 L=25.00mm 0-160 deg.C SMO90510-9096
TPT12 L=25.00mm 0-160 deg. C 500mm cable90513-0949
TPT12 L=25.00mm 0-150 deg. C 500mm cable90513-0950
TPT12 L=25.00mm 0-100 deg. C 500mm cable90513-0951
TPT12 L=25.00mm 50-150 deg. C 500mm cable90513-0952
TPT12 L=25.00mm 0-350 deg. F 500mm cable90513-0953
TPT12 L=25.00mm -10-900 deg. C 500mm cable90513-0954
TPT12 L=25.00mm 0-200 deg. C 500mm cable90513-0955
TPT12 L=25.00mm -20-140 deg. C 500mm cable90513-0956


TPT31
 DescriptionDenominationPart NoAdd to cart
 TPT31
TPT31 15mm M12 90530-6458
TPT31 25mm M1290530-6459
TPT31, Digital output C L=15mm90512-8456
TPT31, Digital output C L=25mm90512-8457


TM411
 DescriptionDenominationPart NoAdd to cart
 TM411
RTD, TM411 Cl.DN25-38 L=70.00mm 70000185147
RTD, TM411 G1" L=85.00mm90533-3280
RTD, TM411 G1" L=90.00mm70000185048
TM411 1xPt100 Class A L=30mm clamp90522-9079
TM411 1xPt100 Class A L=50mm G1"90522-9078
